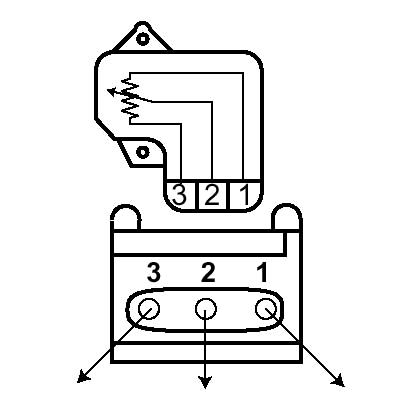

POTENZIOMETRO FARFALLA                                                 a









                                                                                     1   2   3   -   PIN DI RIFERIMENTO
                                                                                     3   2   1             I.A.W
                                                                                     2   3   1             MARELLI- BOSCH
                                                                                     1   2   3             HONDA PGM-FI
                                                                                     3   2   1             HONDA PGM-FI
                                                                                     1   2   3             ROVER MEMS
                                                                                     1   2   3             I.A.W.08F.6B

                                                                                     3   2   1            *EGR FORD



CHIAVE TER.COMP. CONTROLLI VALORI
MAR 1(+) - 3(-) tensione d'alimentazione 4,5 - 5 volt
MAR 2(S) - 3(-) segnale d'uscita 0,5 - 5 volt
    * Segnale uscita EGR = senza depressione 1,2volt
                                         con depressione 4,3volt
  … preferibile usare per  controllare il  segnale in uscita dei potenziometri, un
  multimetro con strumento a lancetta, se non  si  dispone di  un  oscilloscopio,
  in quanto i seghettamenti sul segnale, causa principale di malfunzionamento,
  sono piŁ facilmente individuabili.
